slip ring customized manufacturers



·Continuous transmission of signal and data under 360° rotation freely .

·Less noise, long life Low torque.

·Smooth rotation Electrical noise<0.01 Ω .

·Small compact construction.

Details

Features:

·Continuous transmission of signal and data under 360° rotation freely

·Less noise, long life

·Low torque, smooth rotation

·Electrical noise<0.01 Ω

·Small compact construction

·Housing diameter 12 to 25mm

·Contact material: gold-gold

·Protection grade can be IP65

·Flexible, color-coded, silver-plated, Teflon® insulated lead wires

·Higher than 2A current can be special design

·Part Number Description:

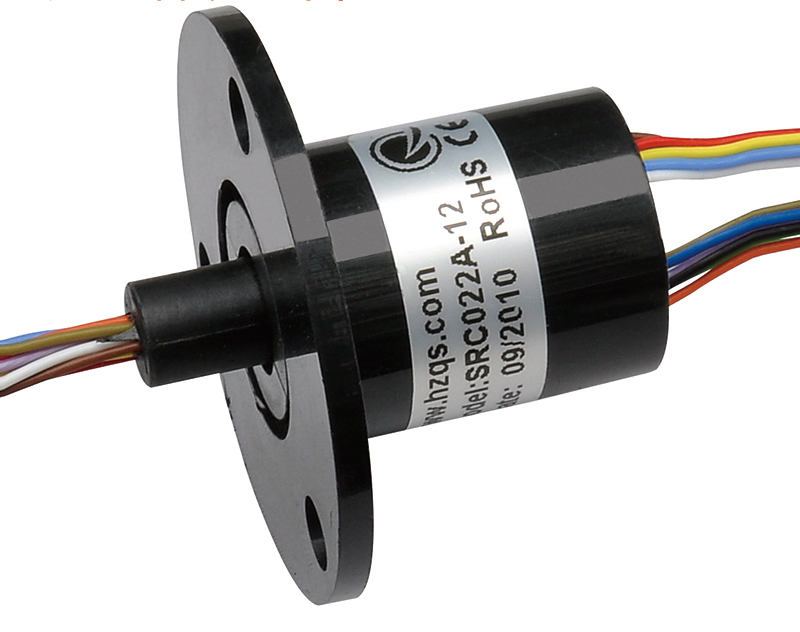

·For example: SRC022A-6: SRC means capsule slip ring, 22means OD22mm, A means A type flange,6 means 6 circuits.

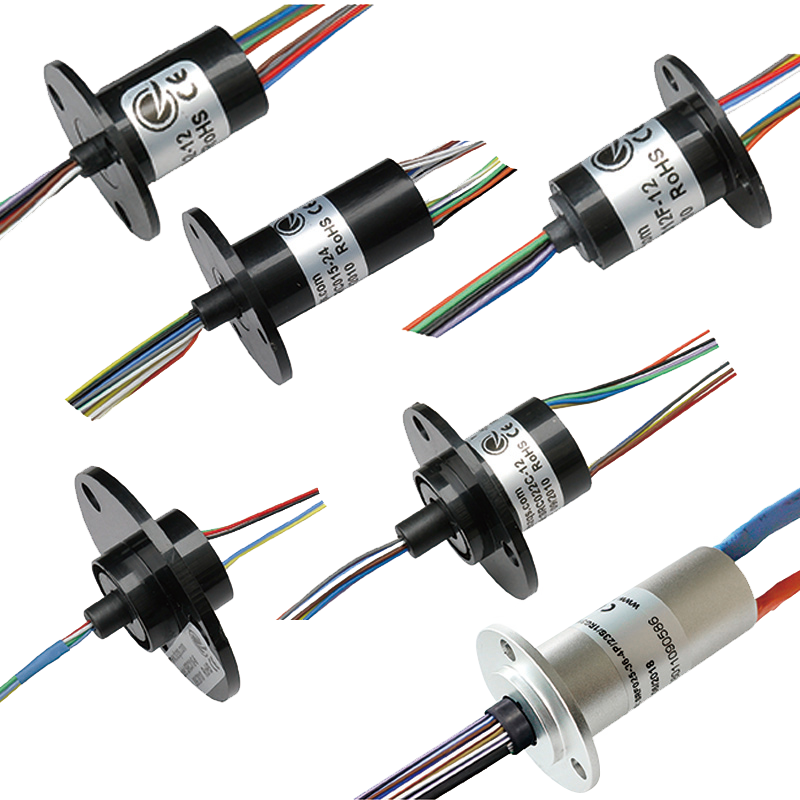

Model List:

Model

OD (mm)

Circuit Qty.

Max. Current

PDF Spec

SRC012

12.4mm

6, 8, 12, 15, 18

2A

PDF

SRC015

15mm

24

2A

PDF

SRC016

16mm

6

2A

PDF

SRC018

18mm

6, 12, 14

2A

PDF

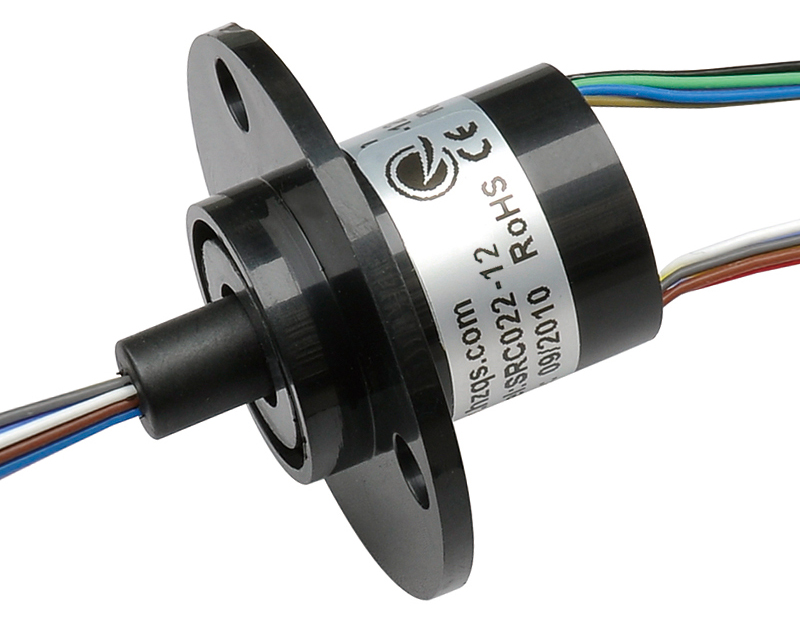

SRC022

22mm

6, 12, 15, 18, 24, 30, 36

10A

PDF

SRC025

25mm

30, 36, 46, 56

10A

PDF


Typical Applications:

·CCTV Pedestal

·Automatic arm

·Medical equipments

·Rotary index table

·Production line, industry process equipment
