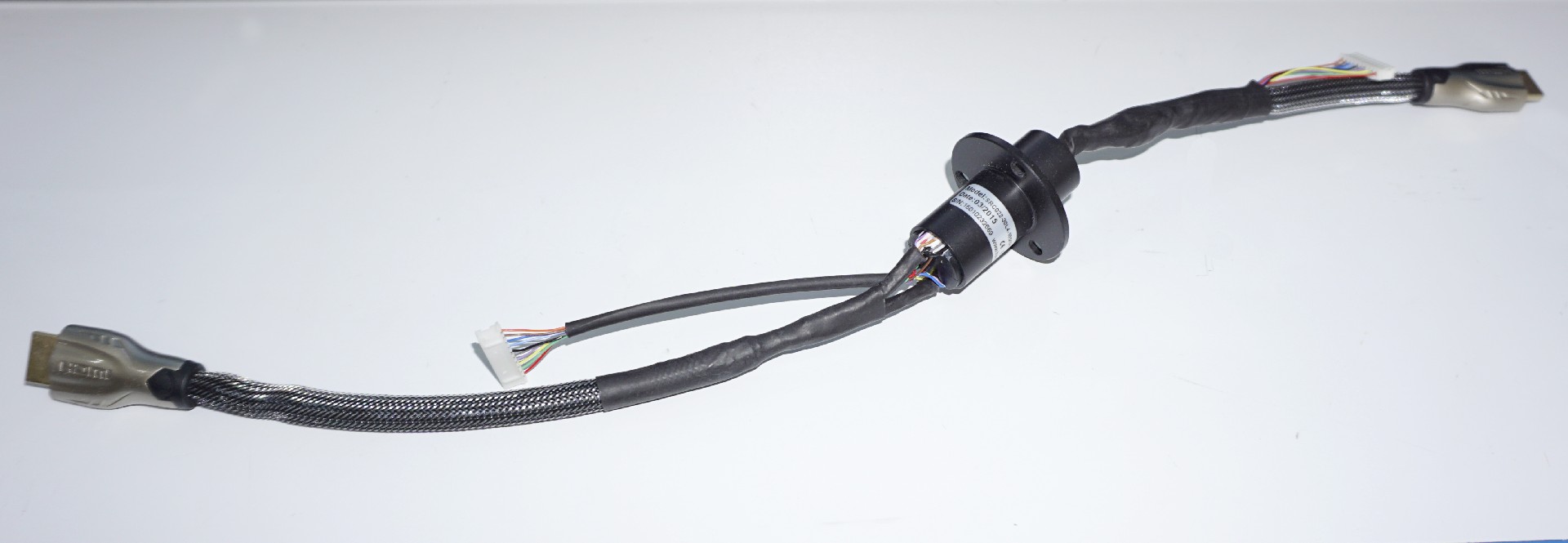

The SRF high definition slip rings use Propser developed RF rotary joint from the center, but not through the rings. It can pass 1080P 60HZ signals, HD-SDI signals, the max transmission rate can reach up to 3G. The RF rotary joint combine with our capsule SRC022 slip rings lead to have very compact size. The RF can use RG179 RF178 RF cables with SMA, BNC connectors etc.
Features:
Use Prosper developed RF rotary joint
Combine with SRC022, SRF025 slip ring with power ring.
Transmission 1080P, HD-SDI signals
The transmission rate can up to 3G
Connection with RG179, 75 ohm RF cable
SMA and BNC connector with RF cables
Model List:
Model | OD (mm) | Circuit Qty. | Max. Current | PDF Specification |
SRF022/025 | 22mm/25mm | 8, 12, 18, 24 | 2A | Download |
SRF022A | 22mm | 8, 12, 18, 24 | 2A | Download |
SRF022C | 22mm | 8, 12, 18, 24 | 2A | Download |
Note: If no standard models suitable, contact us for customized solution. Pls email: overseas@hzqs.com and europe@hzqs.com.
Typical Applications:
CCTV Pedestal
