·Continuous transmission of signal and data under 360° rotation freely.
·Apply advanced fiber brush technology, free of maintenance or lubricating oil.
·Low torque, smooth rotation.Electrical noise<0.01 Ω.
·Multi contact points in each circuit, low contact pressure, low noise, low contact wear.
·Standardized & modularized design.Customized solutions also available.
Features:
·Through bore size 3mm to 900mm
·Circuit number 2-350
·Operation speed:up to 250rpm, 800rpm, 1500rpm
·Circuit current: 2A, 5A, 10A, 15A, 20A, 50A, 100A, 200A, up to 400A.
·Power circuit and Ethernet signal circuit can be integrated to one unit slip ring
·ABS plastic housing and AL housing are optional
·Flexible, color-coded, silver-plated, Teflon® insulated lead wires
·Contact material silver to silver coating
·Standard wire leads length is 500mm
·Standard temperature is -20°C to +80°C
·Insulation strength 500V AC@50HZ 60S
·Insulation resistant 500MΩ 500VDC
·Long life cycles up to 80 million cycles
·Protection grade IP 51, IP54, IP 65
·Ethernet circuits can transmission 100Mbps, 1Giga data.
Typical Applications:
·Industrial machinery-machining center, rotary index table
·Heavy equipment turrets, cable reels, test equipment
·Packaging machines, palletizing machines, magnetic clutch
·Process equipment
·Rotary sensors, emergency lighting, robotics
·Medical equipment
·Radar system
·Labling
Part Number Description:
For example: SRH1235-12: SRH means through bore slip ring; 12 means through bore diameter 12mm; 35 means outer diameter 35mm; 12 means 12 circuits.

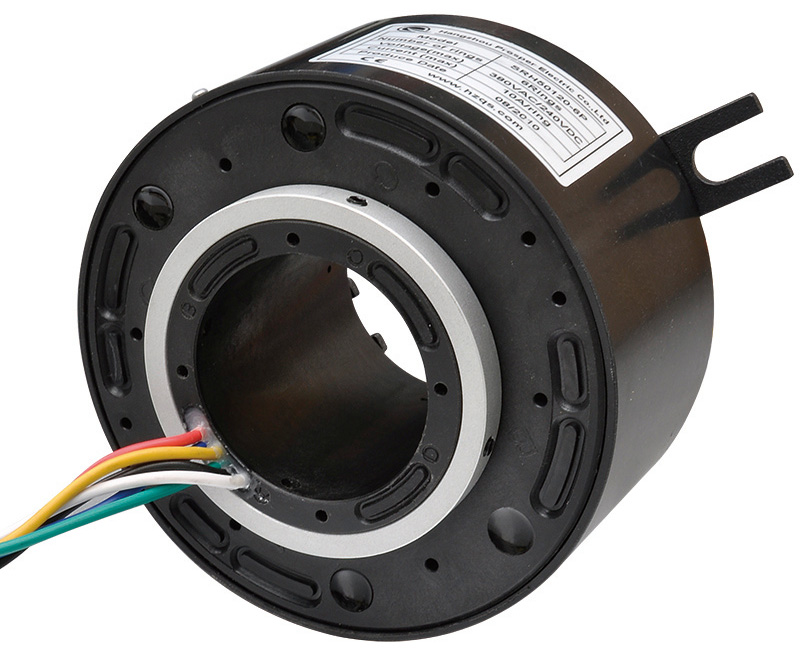

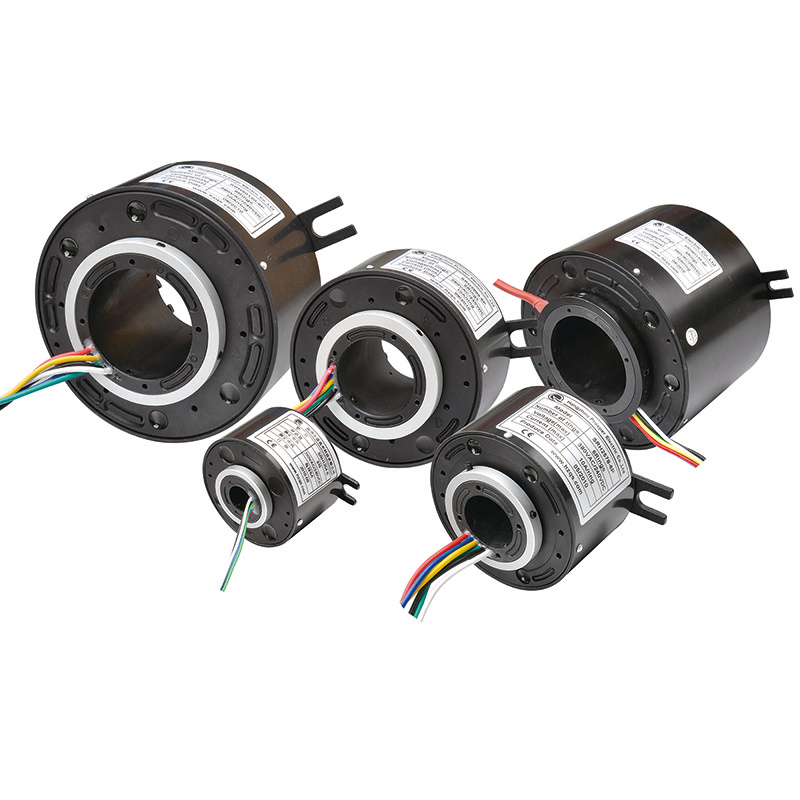

Model List:
Model | OD (mm) | Circuit Qty. | Max. Current | PDF Spec |
SRH1235 | 35mm | 6, 12 | 5 A | |

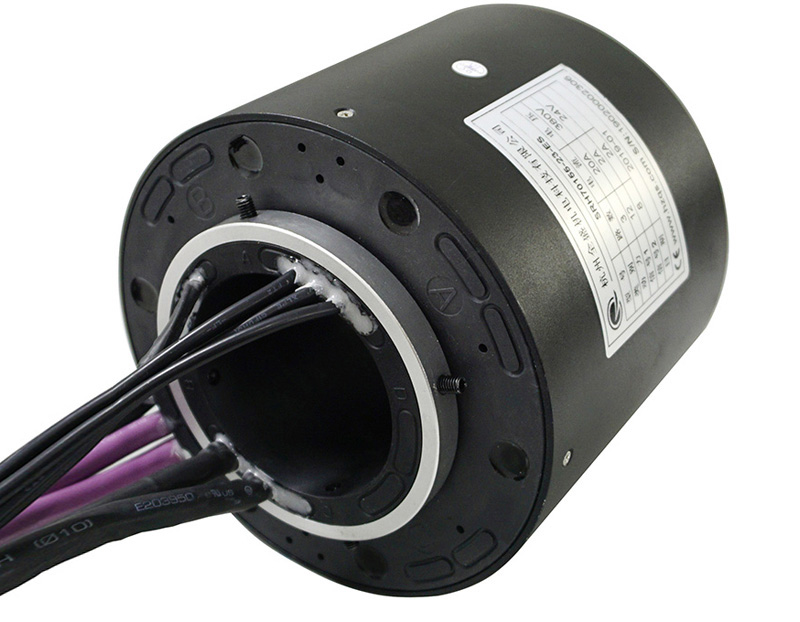

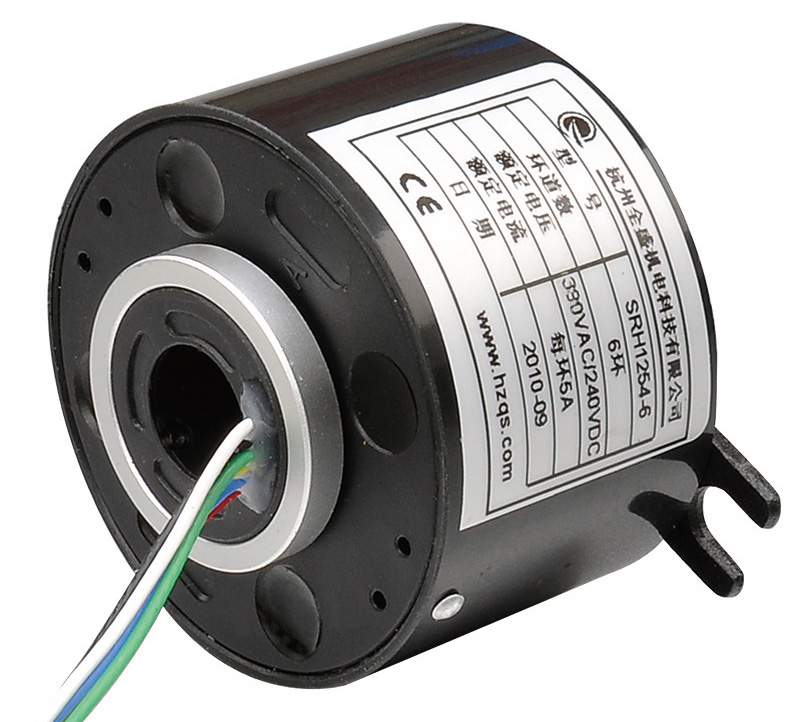

SRH1254 | 54mm | 6, 12, 18, 24 | 5 A | |

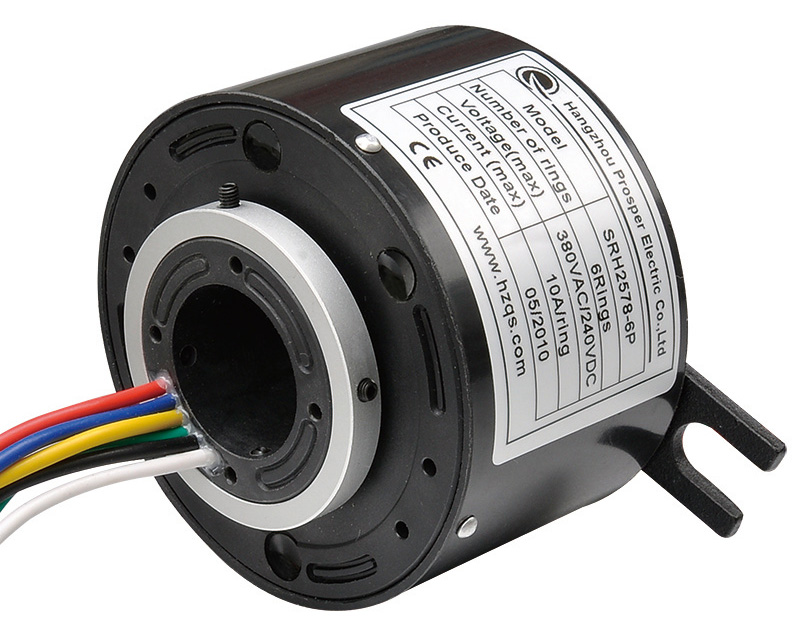

SRH2578 | 78mm | From 6 to 48 | 15A | |
SRH3899 | 99mm | From 6 to 48 | 15A | |
SRH50120 | 120mm | From 6 to 72 | 20A | |
SRH60135 | 135mm | From 6 to 96 | 20A | |
SRH70155 | 155mm | From 6 to 96 | 20A | |
SRH80180 | 180mm | From 6 to 96 | 20A | |
SRH90190 | 190mm | From 6 to 96 | 20A | |
SRH100203 | 203mm | From 6 to 96 | 20A |
