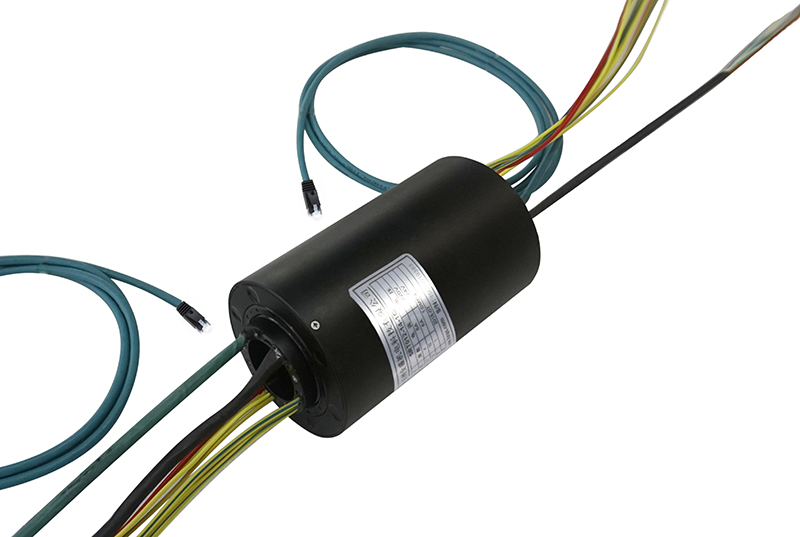

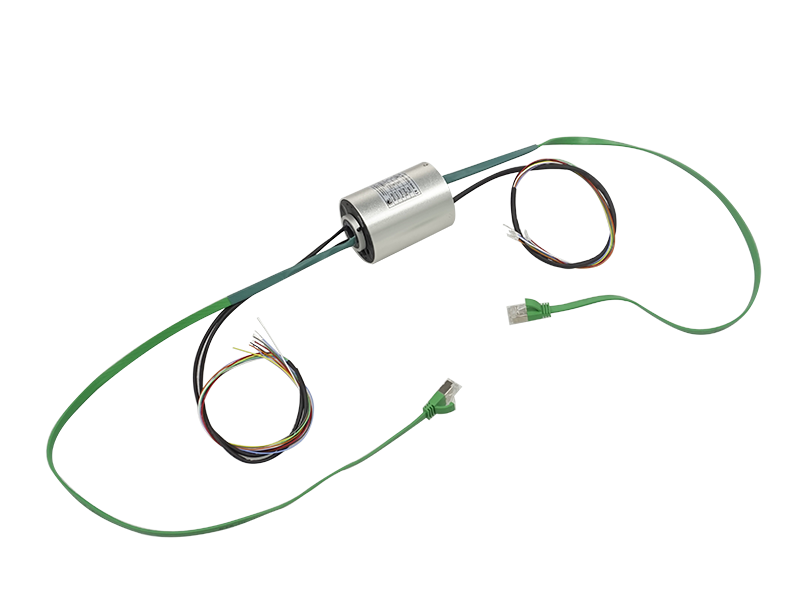

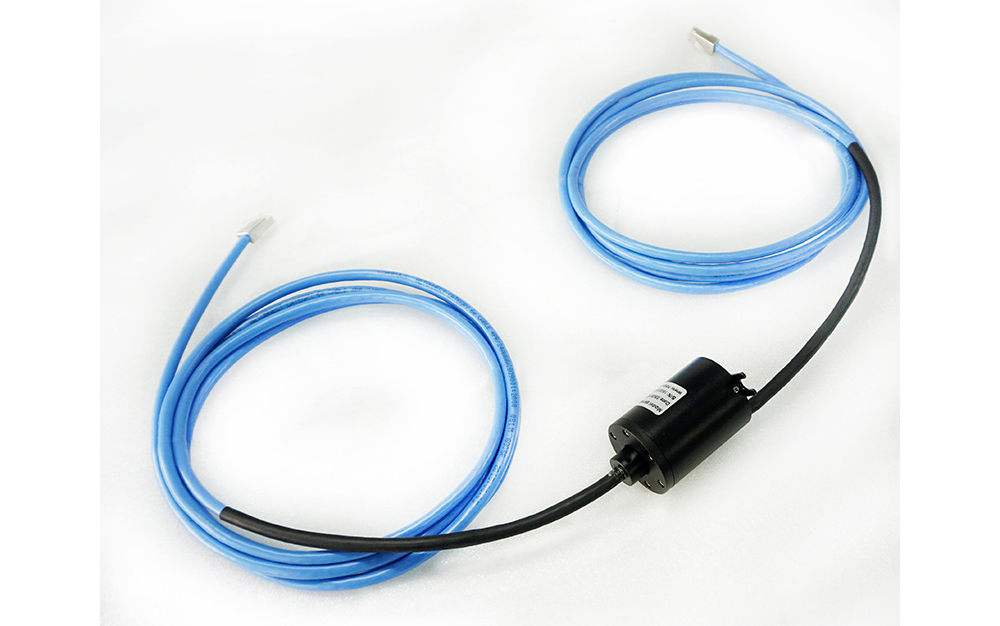

The slip ring we call electric rotary joint,in the paticular condition we need communication the ethernet which the speed is 100Mb or 1Gbits,Prosper has the twisted pair and speical shield. the performance has very good NEXT,RL,SL value.We offer wide range of solution to different applications to meet customer requests.
Features:
·Circuit number from 2-300
·Operation speed: standard up to 250rpm
·Circuit current: 2A, 5A, 10A, 15A up to 400A
·Power channels and ethernet circuts
·Contact material silver to silver coating
·Standard temperature is -20°C to +80°C
·Insulation strength 500V AC@50HZ 60S
·Insulation resistant 500MΩ 500VDC
·Protection grade IP 51, IP 65
·Both capsule and through bore slip rings are available
Typical Applications:
·Robots
·Testing equipment
·Packaging machines
·Process equipment
·Medical equipment

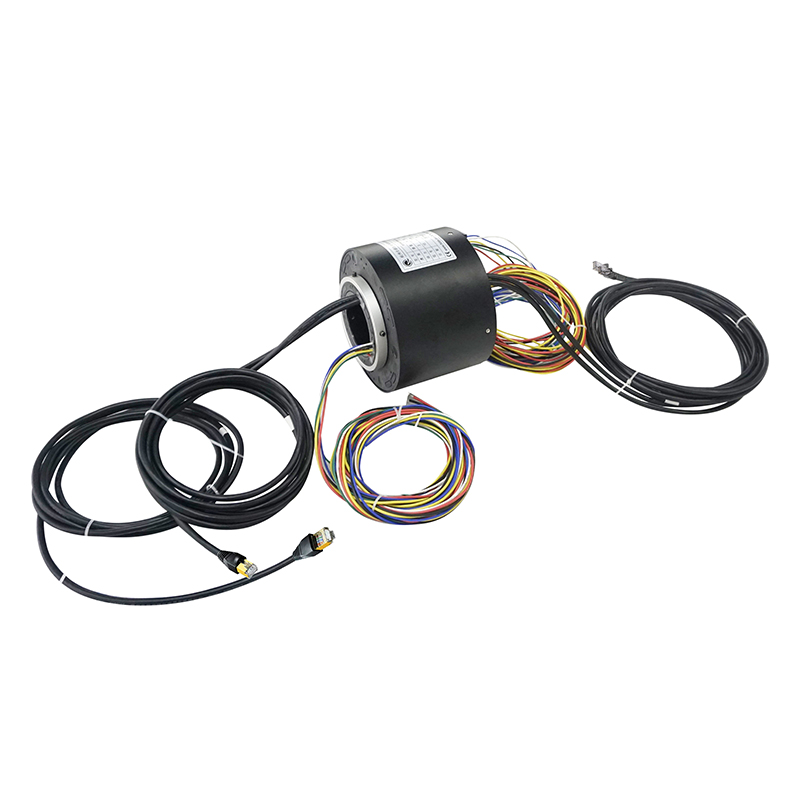

our customer are very satisfied our our ethernet slip rings performance, especially of the big throughbore slip rings, Prosper use speical design to match the impdence.
we use high quality data cables with 2 twisted pairs+shields or 4 twisted pairs +shield to ensure the performance of CAT 5, CAT 5e, CAT6.
Further more we add shiled HRS RJ45 connectors both on rotor side and stator side .
