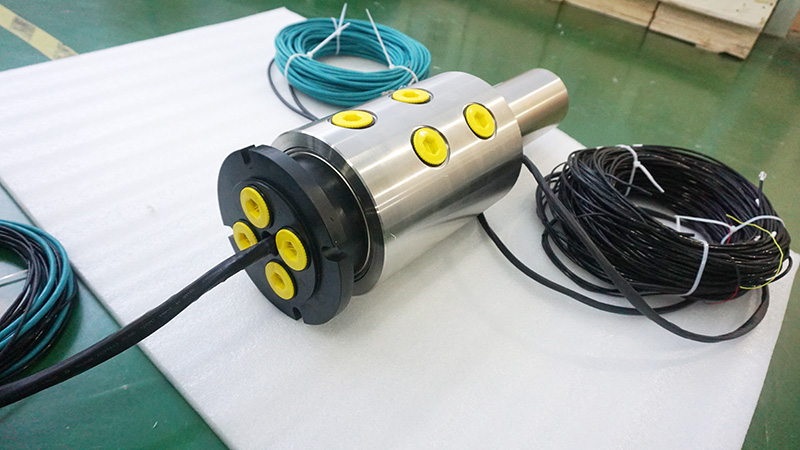

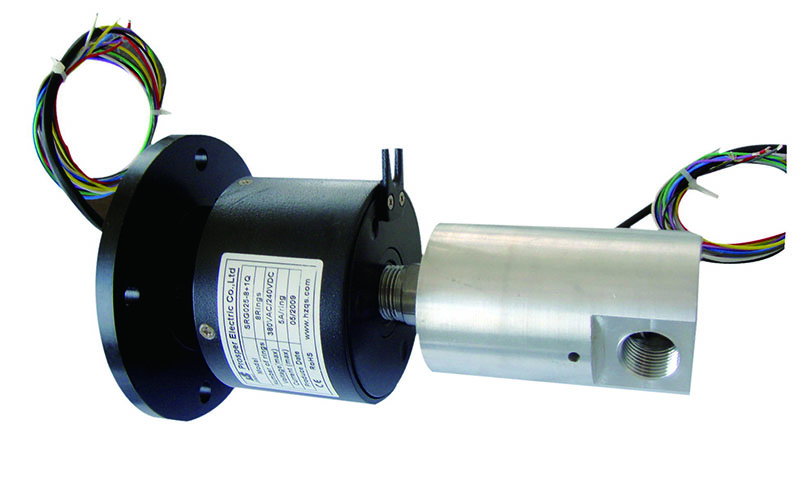

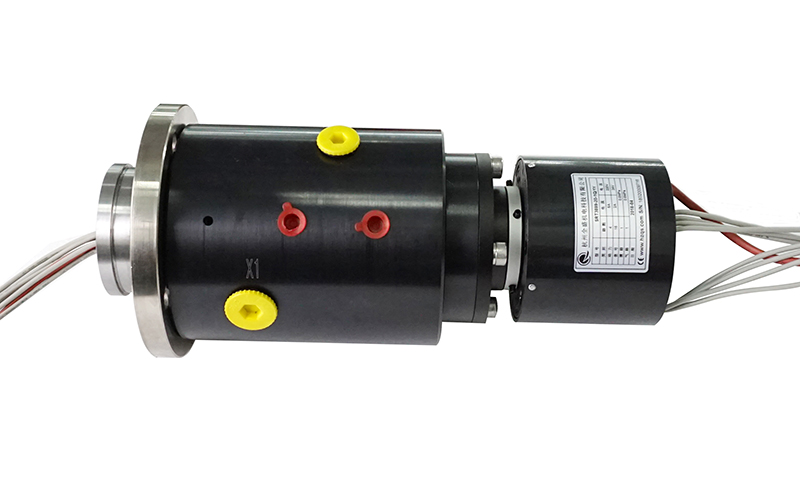

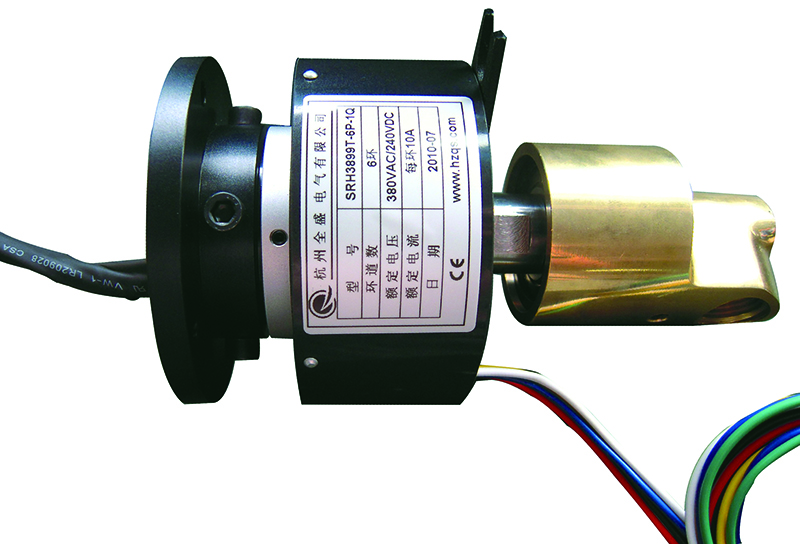

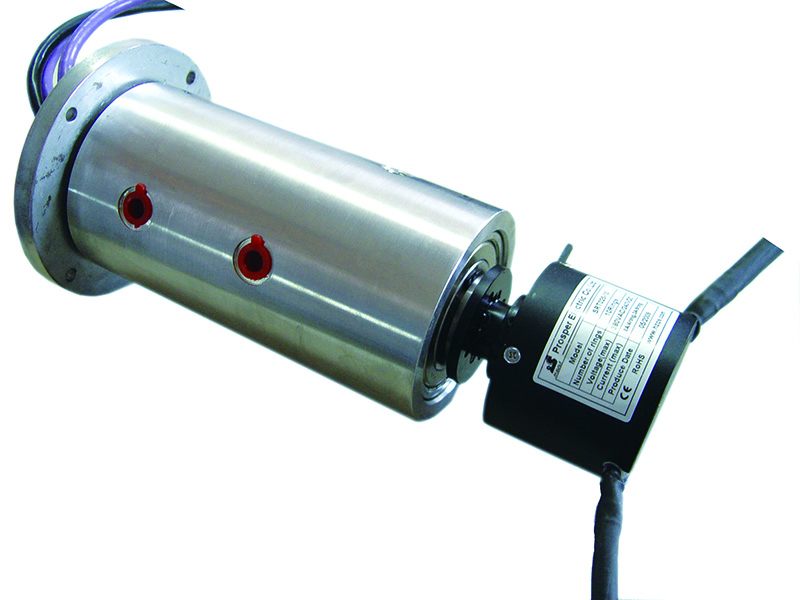

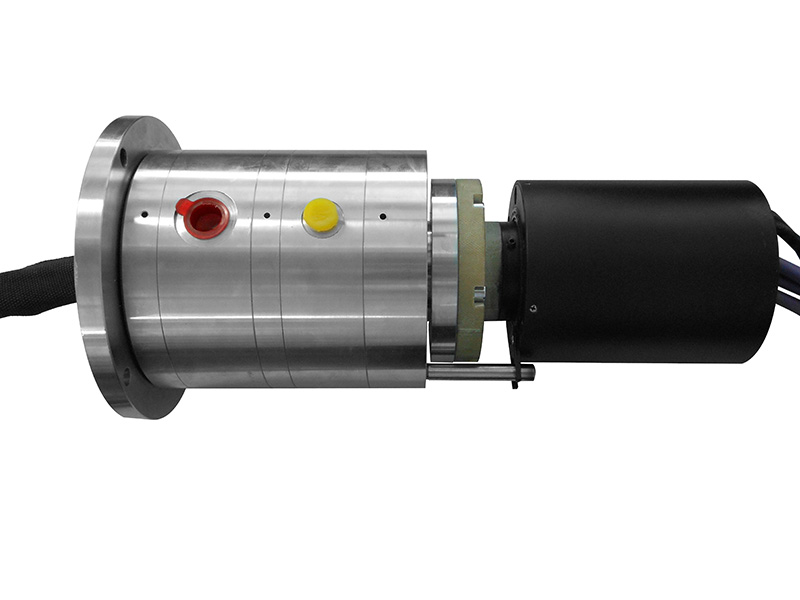

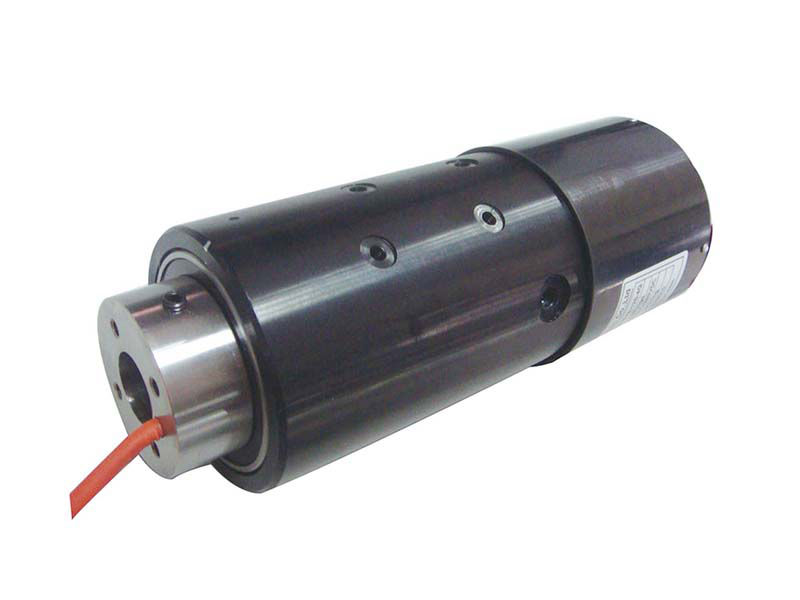

The pneumatic hydraulic electrical hybrid rotary unit is the aggregation of the pneumatic slip ring, hydraulic slip ring and electric slip ring.It is for some special application which need 360 degree rotation, meantime transmit air or liquid, signals. Most it used to high end application as oil field, ship etc.
Features:
·Combine the pneumatic hydraulic rotary joint with electric slip rings
·Circuit number from 2-350
·Operation speed: standard up to 250rpm
·Circuit current: 2A, 5A, 10A, 15A, 20A, 50A, 100A, 200A, up to 400A.
·Contact material silver to silver coating
·Standard wire leads length is 500mm
·hydraulic channels 2 to 10
·Liquid pressure 1bar
·Standard temperature is -20°C to +80°C
·Insulation resistant 500MΩ 500VDC
·Long life cycles up to 80 million cycles
·Protection grade IP 51, IP54, IP 65
·Ethernet circuits can transmission 100Mbps, 1Giga data.

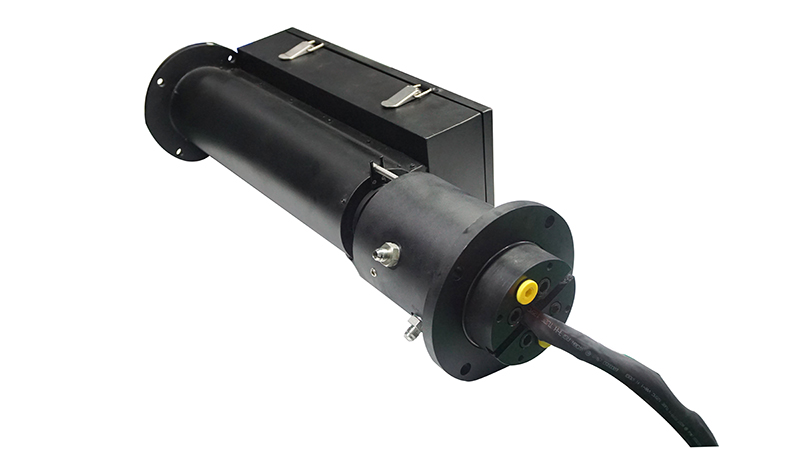

we have many speical options to customer, for example we can do radial exit PG gland on the housing of the stator side. the cable are well protected by the bellows and shrink tubes.
