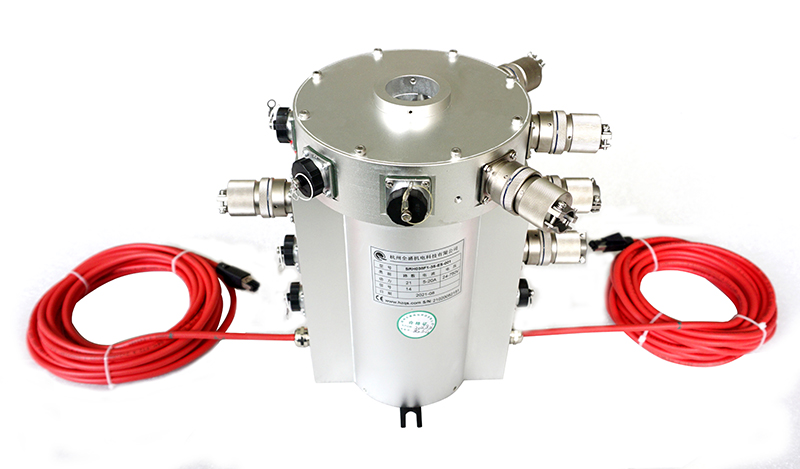

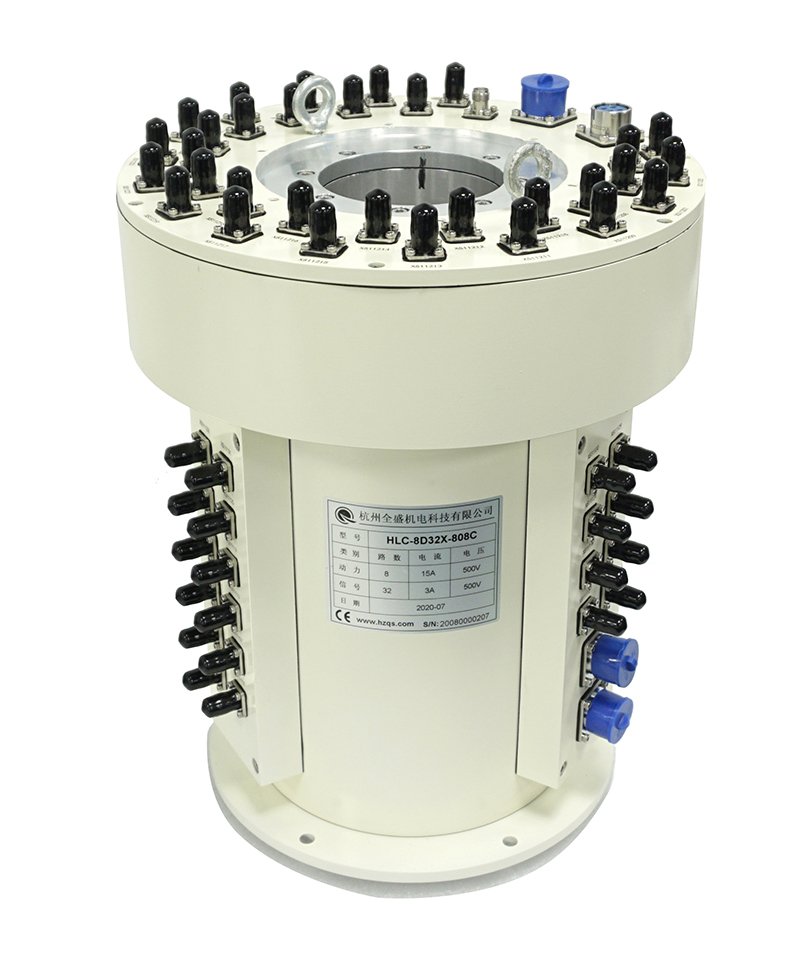

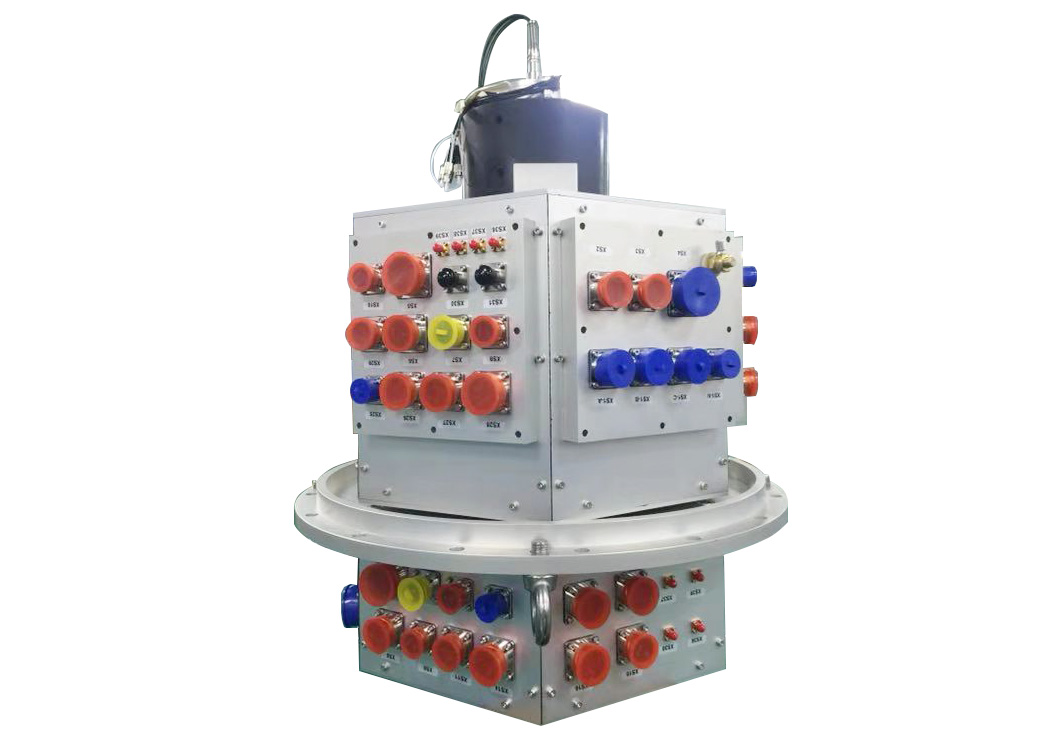

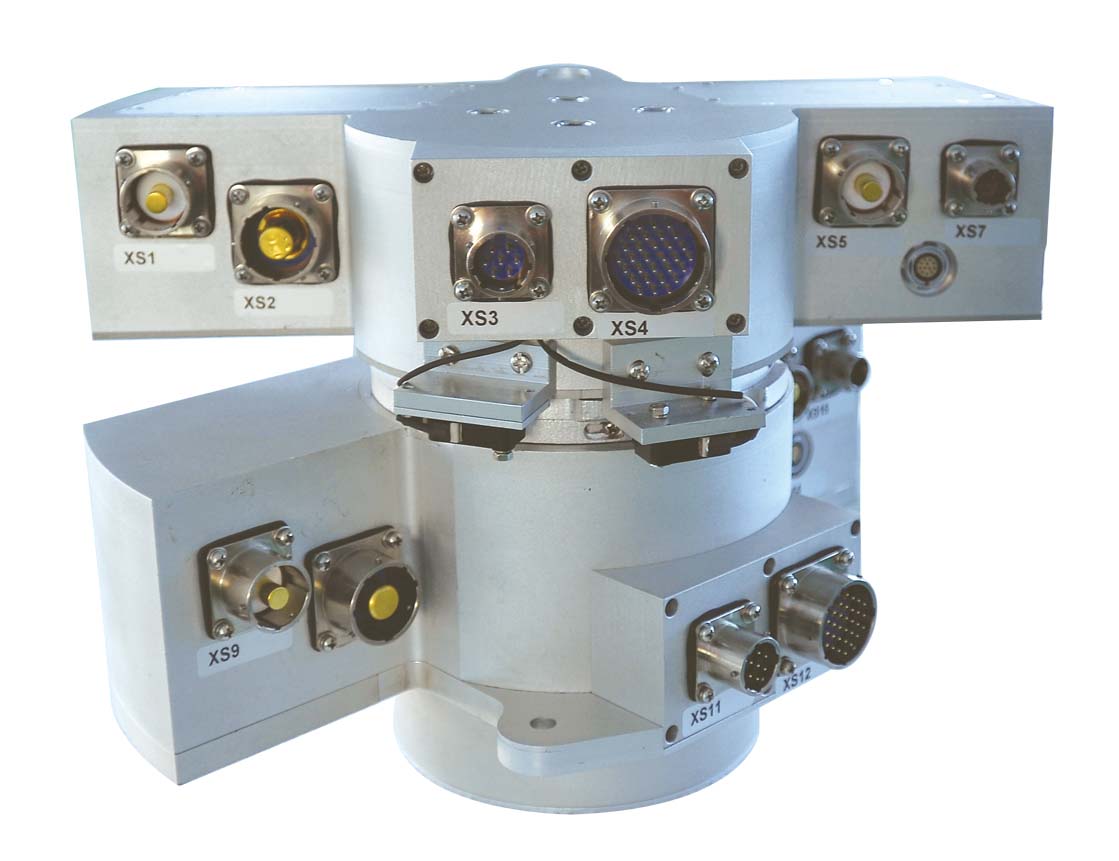

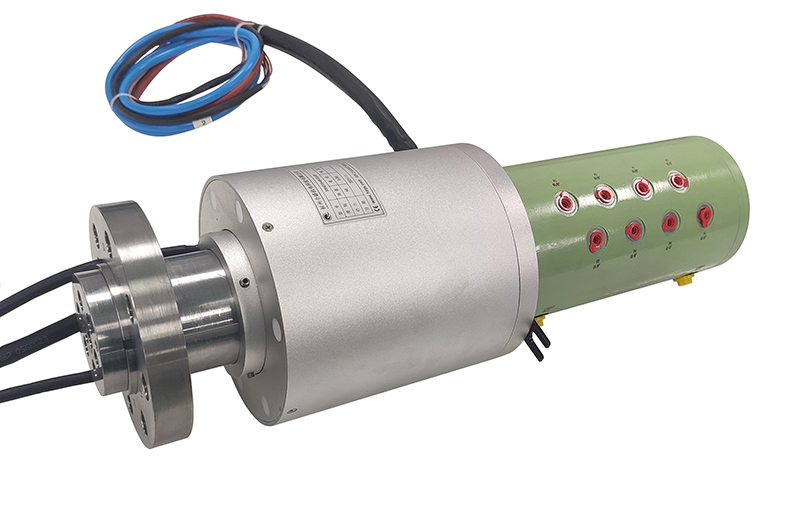

Prosper's slip rings are widely used in Military areas, we offer solutions for all type of electrical power, electrical signals and data buses, optical signals, gaseous and liquid media and combinations of these transmission technologies, which are stable performance, long lifetime. These solutions can be fully meet the needs of military equipment in different application areas, such as high protection, high and low temperature, anti vibration, impact resistance, resistance to high pressure and other requirements.
Features:
Through bore size 3mm to 500mm
Circuit number from 2-350
Operation speed: standard up to 250rpm
Circuit current: 2A, 5A, 10A, 15A, 20A, 50A, 100A, 200A, up to 400A.
Power circuit and Ethernet signal circuit can be integrated to one unit slip ring
Standard housing is ABS material up to bore size60mm, AL housing offered the bore size bigger than 70mm
Flexible, color-coded, silver-plated, Teflon® insulated lead wires
Contact material silver to silver coating
Standard wire leads length is 500mm
Standard temperature is -20°C to +80°C
Insulation strength 500V AC@50HZ 60S
Insulation resistant 500MΩ 500VDC
Long life cycles up to 80 million cycles
Protection grade IP 51, IP54, IP 65
Ethernet circuits can transmission 100Mbps, 1Giga data.
Cable gland exit
Typical Applications:
Military Field
